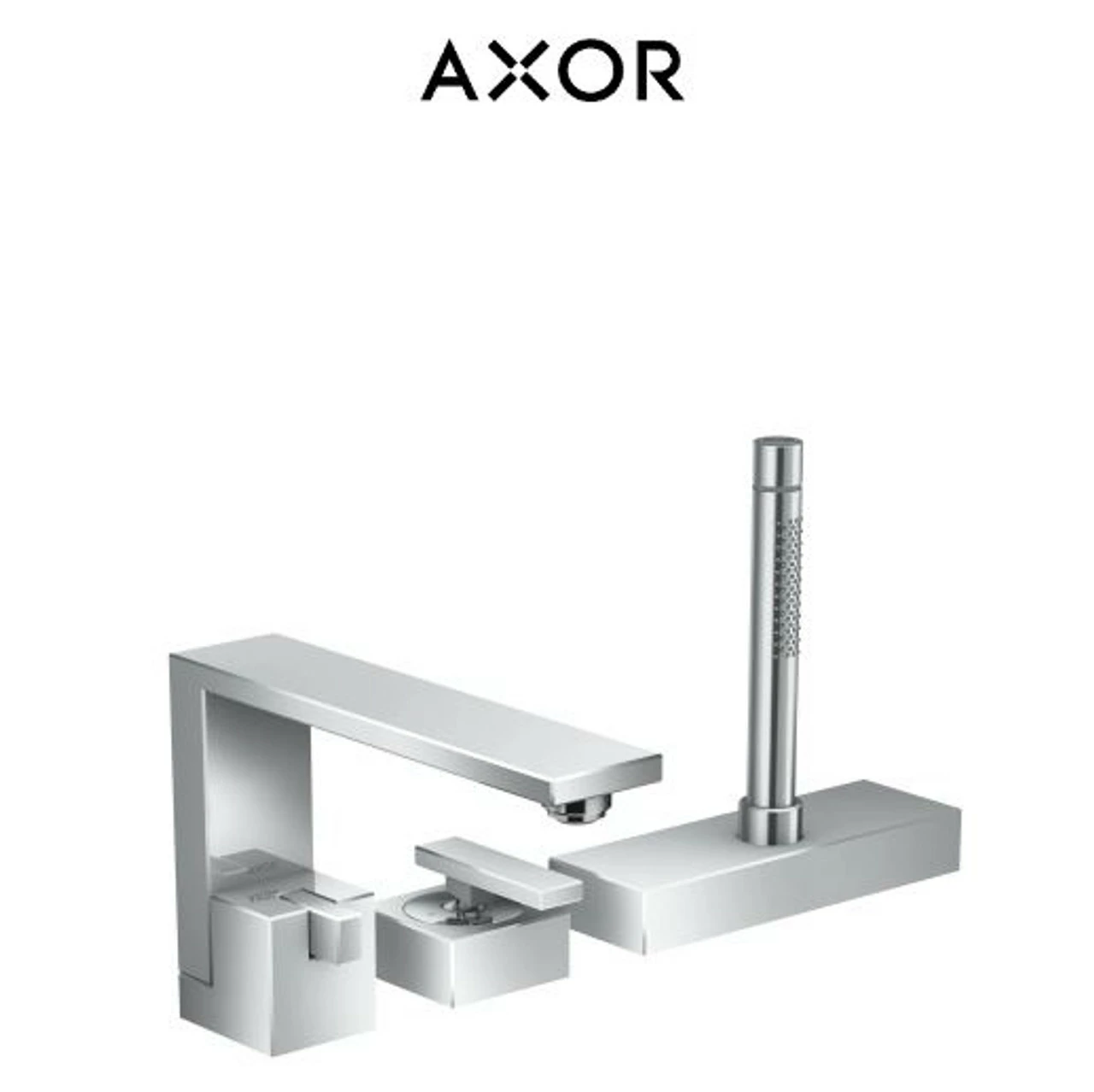

Axor Edge Deck Mounted Roman Tub Filler With Built-In Diverter And Hand Shower – Less Rough-In

An exquisite masterpiece at the bath: The 3-hole roman tub faucet with hand shower exudes distinctiveness and exclusivity. Designed to satisfy discerning tastes and high aspirations. The generously proportioned cubes deliver an exceptional design. Superior functionality: The easy-to-use single-lever handle

Axor 46430 Features:

• Covered under Axor’s limited lifetime warranty
• German design and engineering delivers optimal performance
• Constructed of brass
• Brass is highly resistant to corrosion and an excellent choice to withstand high temperatures
• Coordinates with products from the Edge line
• Includes hand shower –  handy for rinsing down the tub or just rinsing off after a bath
• Spray type: Full, IntenseRain
• Maximum pull-out length of hand shower: 55 inches
• Integrated double backflow prevention
• Widespread deck mounted installation – 3 hole faucet with 8-3/4″ centers
• Smooth single handle operation
• 1 handle included with faucet
• Rough in valve not included – options will be presented at check-out
• Includes diverter handle for switching between tub filler and hand shower applications
• All hardware required for installation is included

Axor 46430 Specifications:

• Height: 9-1/16″ (bottom to top of faucet)
• Spout Height: 5-11/16″ (deck to spout outlet)
• Spout Reach: 8-1/4″ (center of faucet body to center of spout outlet horizontally)
• Flow Rate: 5.02 gallons-per-minute
• Hand Shower Flow Rate: 1.75 gallons-per-minute
• Faucet Holes: 3 (minimum number of holes required for installation)
• Faucet Centers: 8-3/4″ (center-to-center distance between handle installation holes)
• Faucet Hole Size: 1-1/4″
