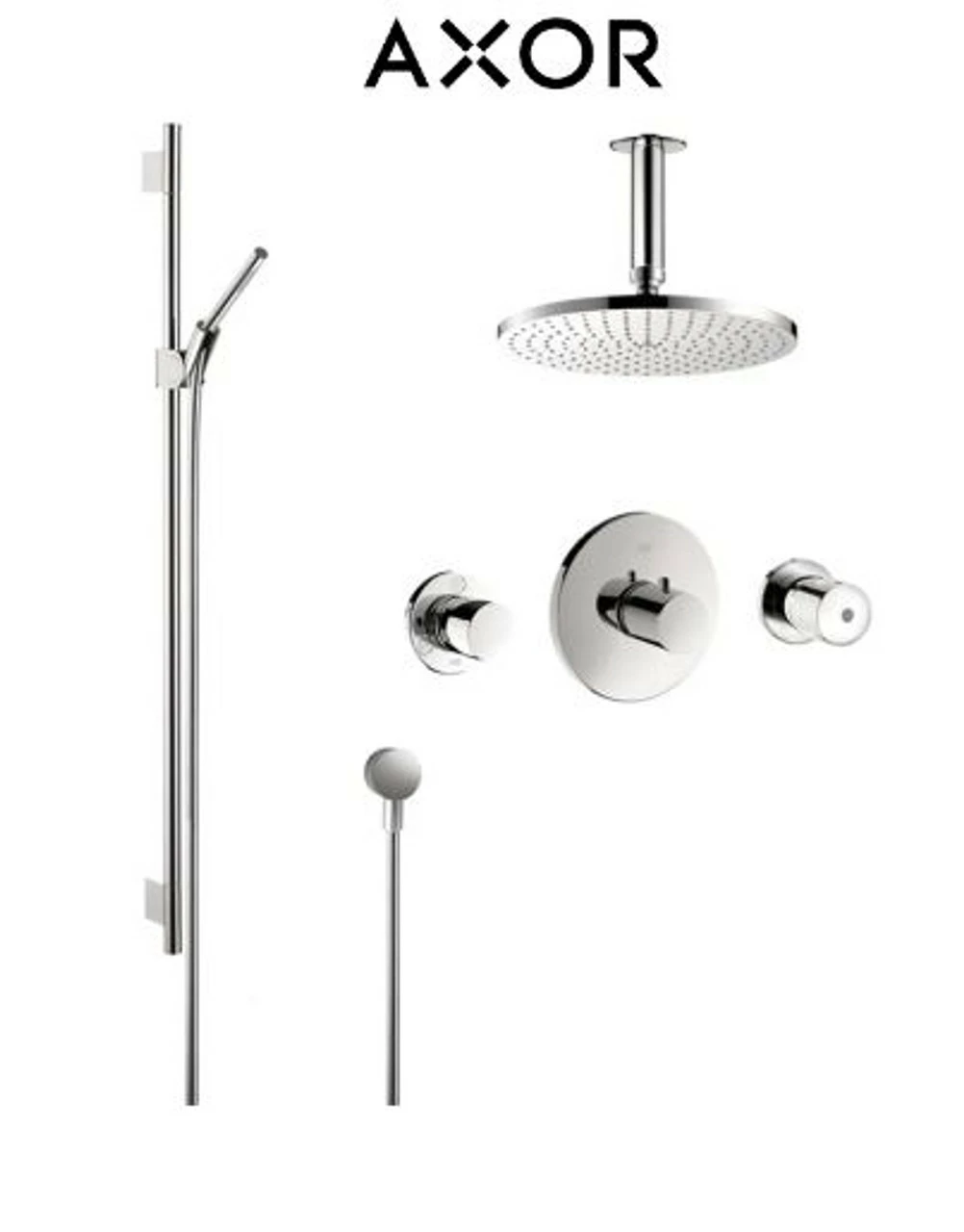

Axor Uno Thermostatic Shower System With Shower Head, Handshower, Slide Bar, And Volume Control – Includes Rough-In Valve

All included components are covered by Axor’s limited lifetime warranty

• Thermostatic valve trim – one dial controls temperature of water
• Diverter trim allows for transfer of water to two different functions
• Volume control trim controls volume of water delivered to system
• Thermostatic valve cartridge with 100° safety stop – push button to override

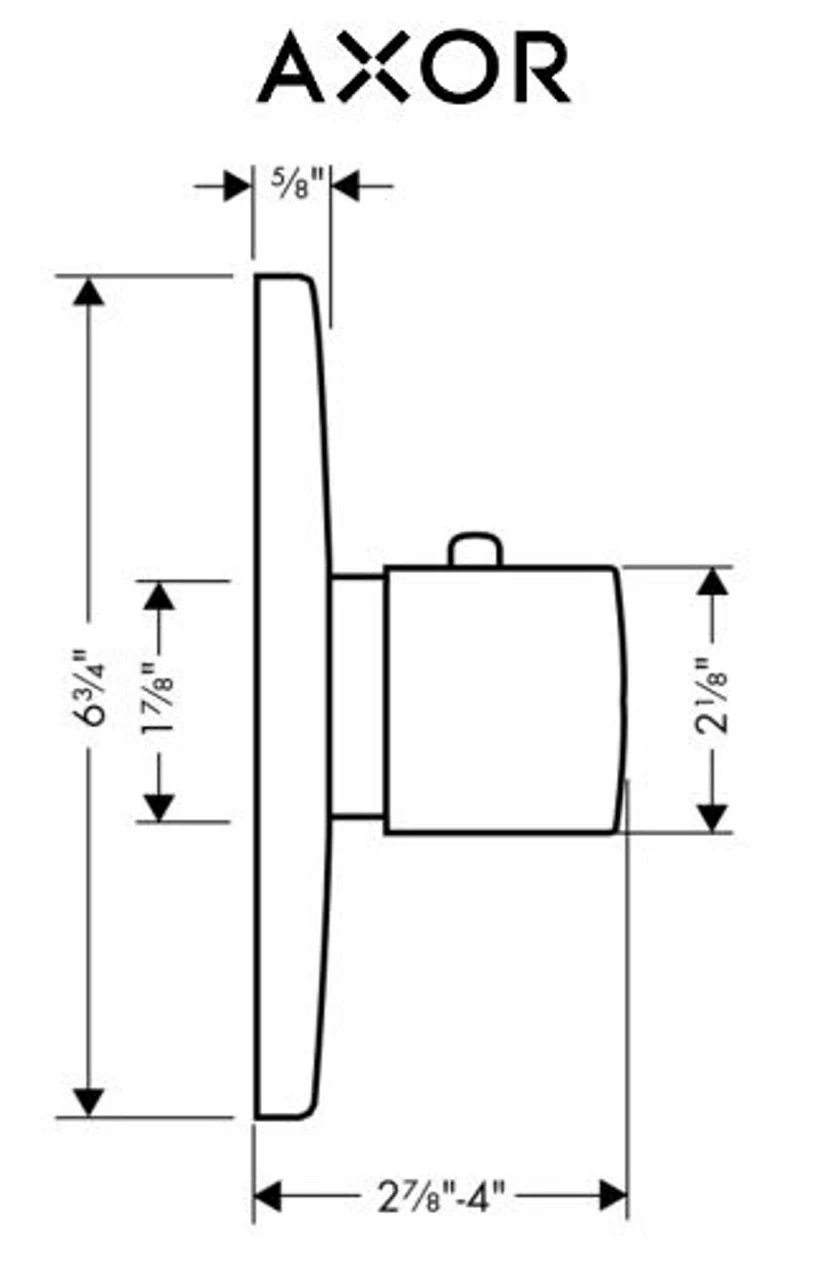

• Thermostatic Escutcheon (Trim Plate) Diameter: 6-3/4″
• Thermostatic Trim Projection (From Wall): 2-7/8″

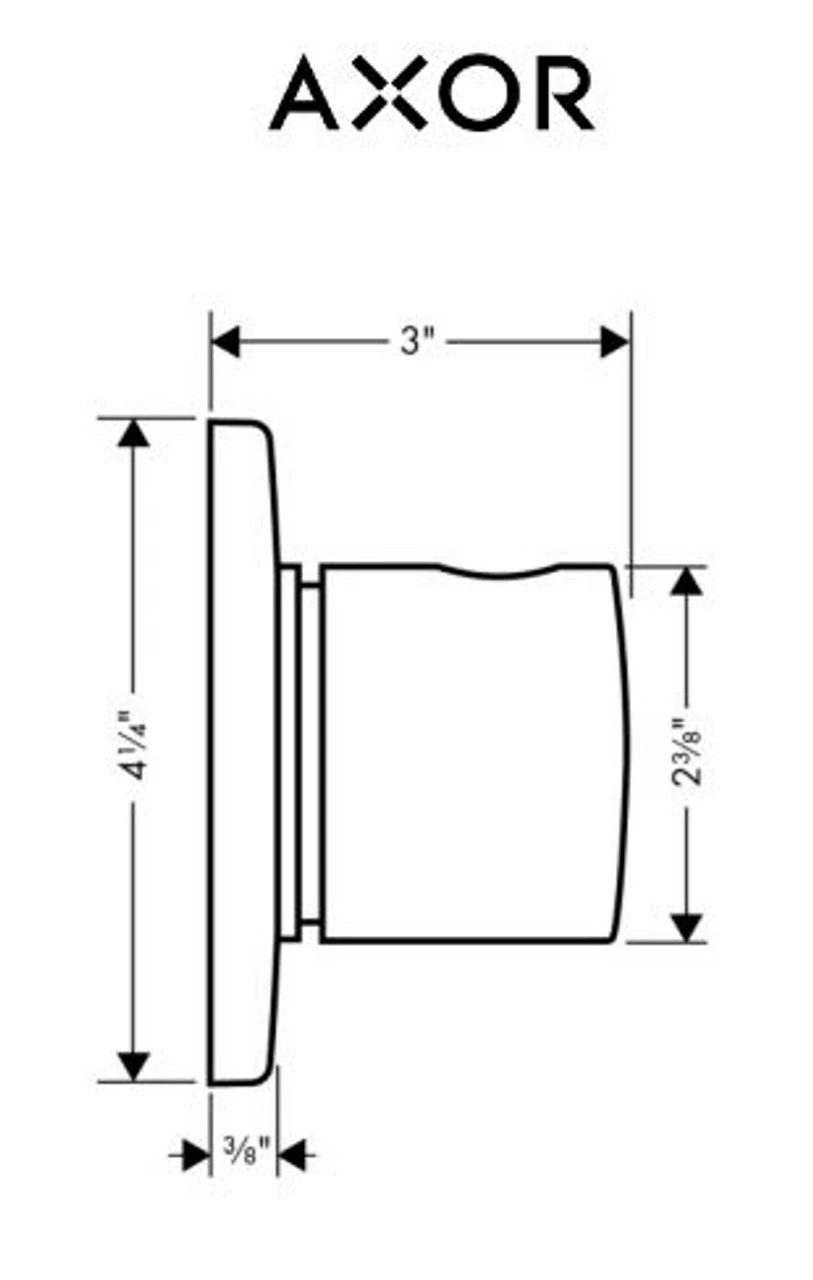

• Diverter Trim Diameter: 4-1/4″
• Diverter Trim Projection (From Wall): 3″

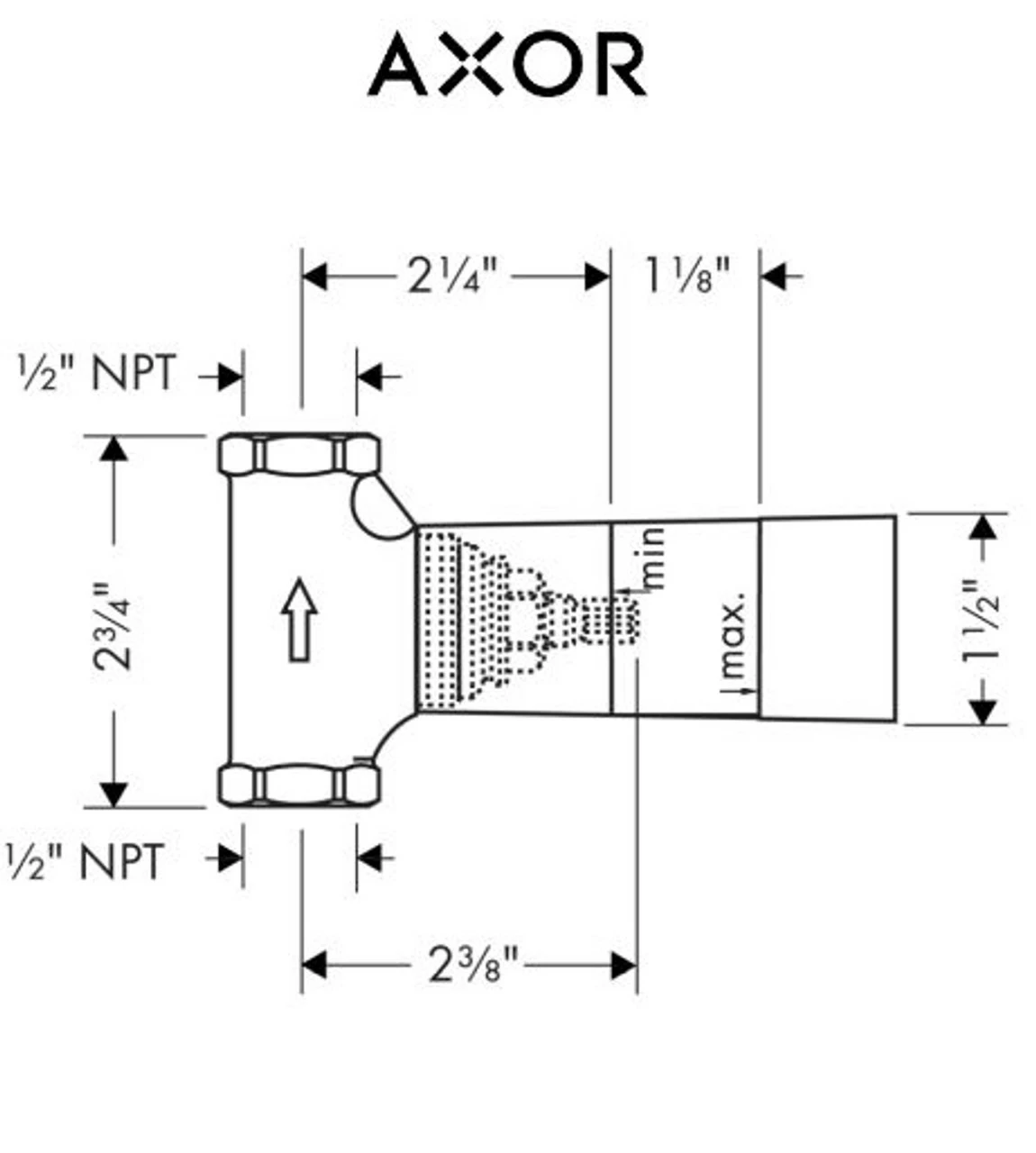

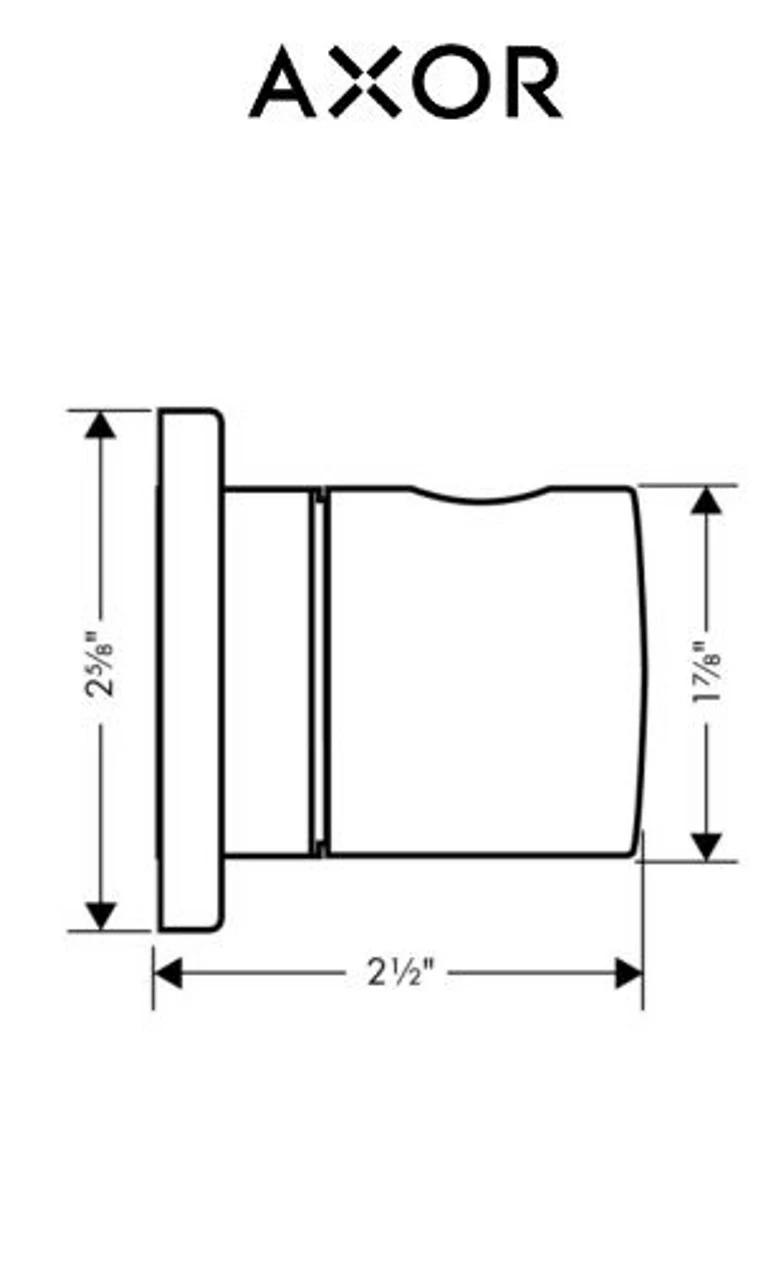

• Volume Control Trim Diameter: 2-5/8″

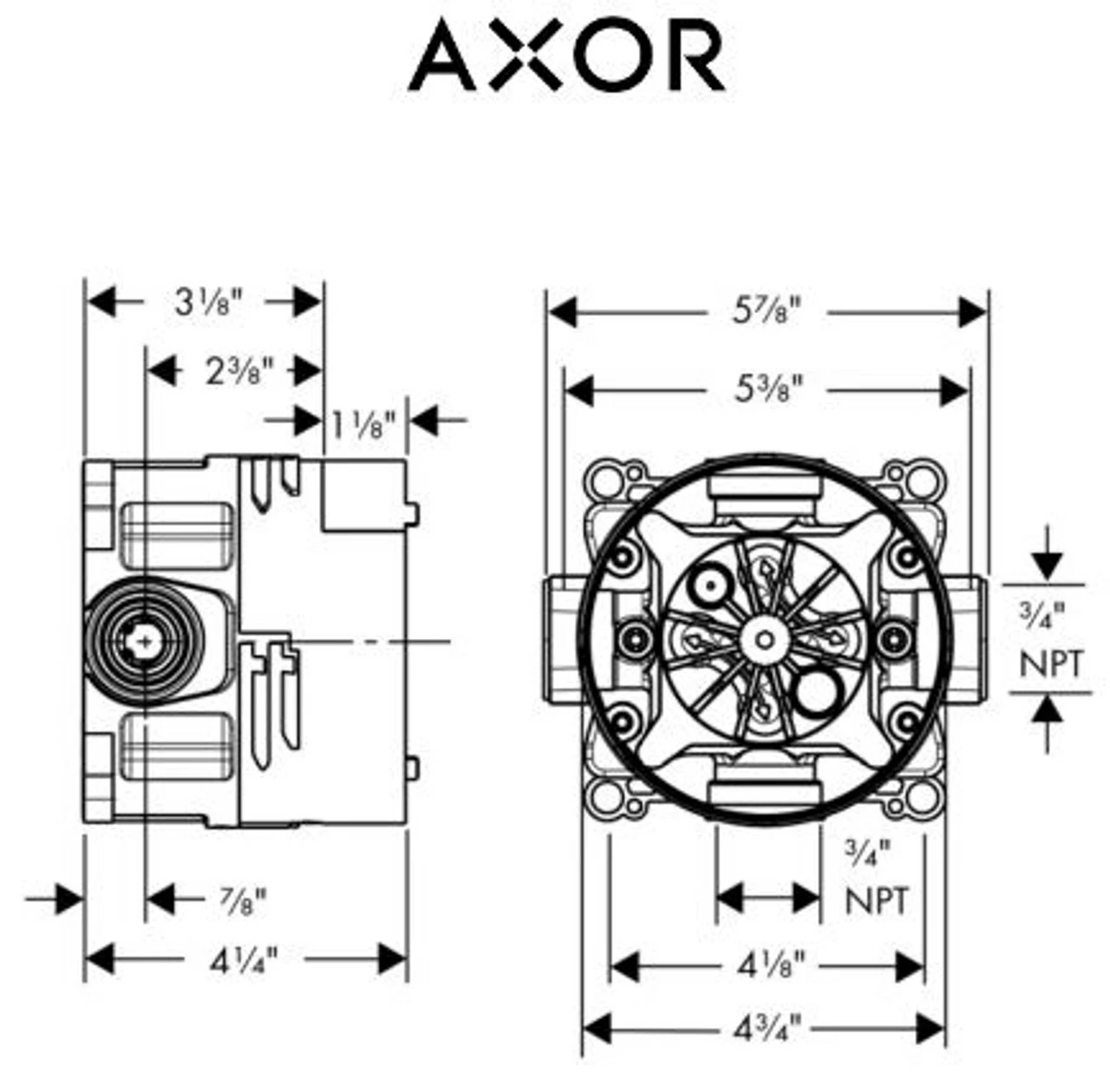

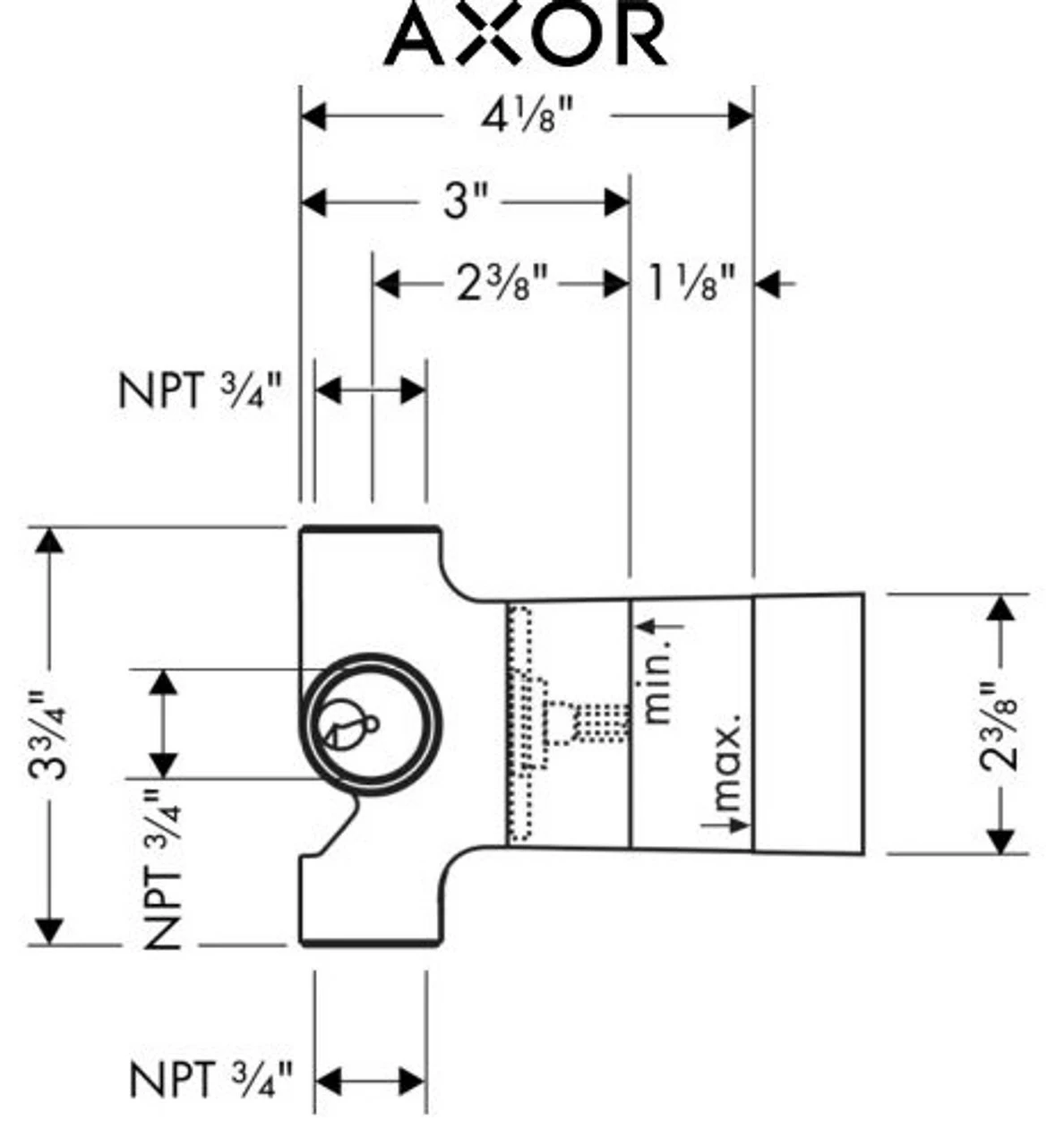

• Axor’s iBox rough-in valve is included – no need to purchase separate valve



iBox Universal Valve: The Hansgrohe iBox universal rough-in offers a wealth of options for the shower. Accommodating all trim styles, Thermostatic or Pressure Balance, the iBox rough-in is the universal rough that makes a multitude of shower configurations possible. Ever since its launch in 2001, the iBox universal rough-in has been setting new standards in the bathroom and has maintained a leading position in the showering world.

Advantages of the iBox Universal Valve

180° Rotational Symmetry

Trim Includes Function Block

Water-Tight Seals All Around

Built-In Service Stops

Simplified Pipe Flushing

Reduced Noise Transfer

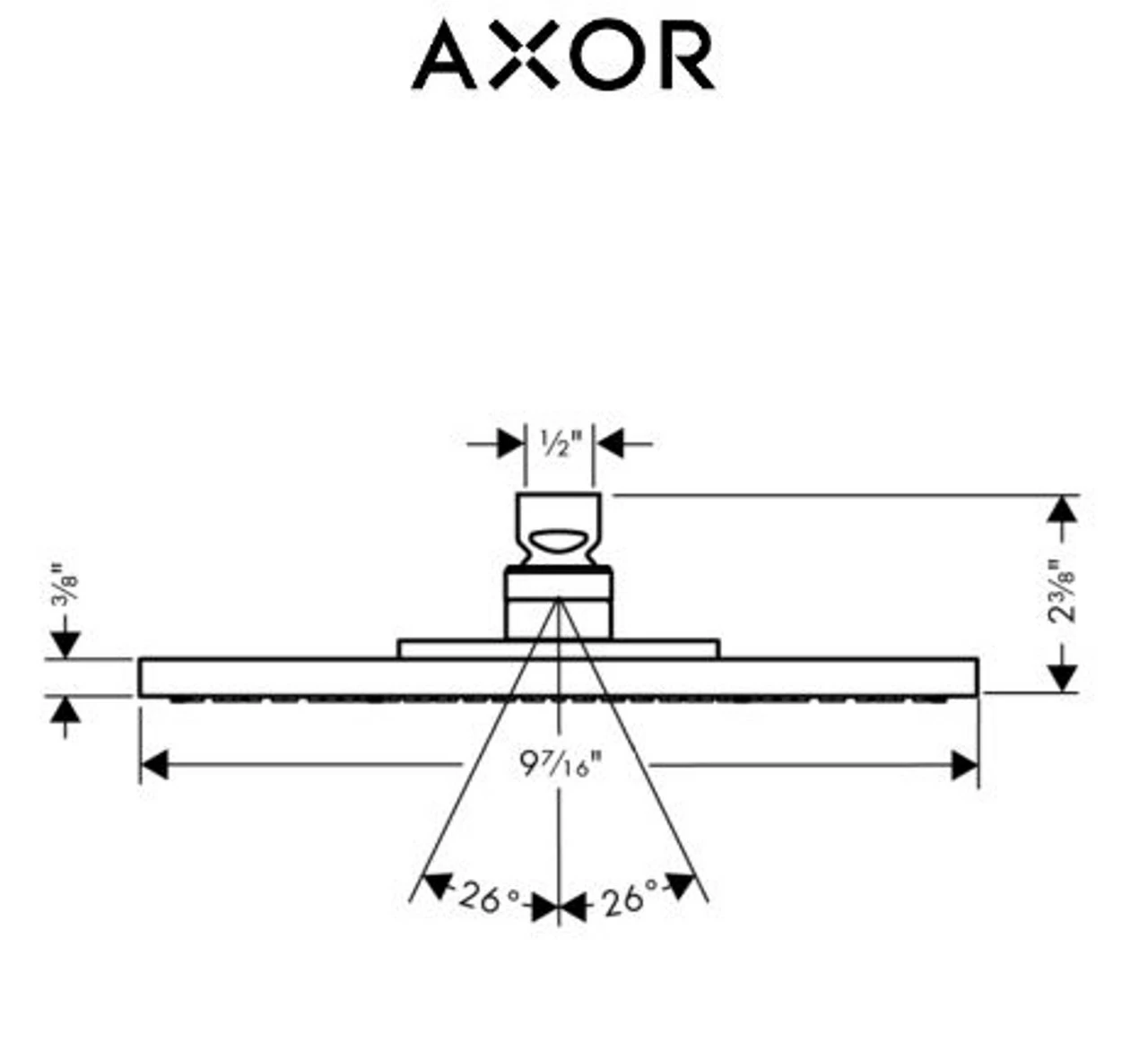

• Single function shower head – features RainAir spray pattern
• Shower Head Diameter: 9-7/16″
• Shower Head Height: 2-3/8″
• Flow Rate: 2.5 GPM

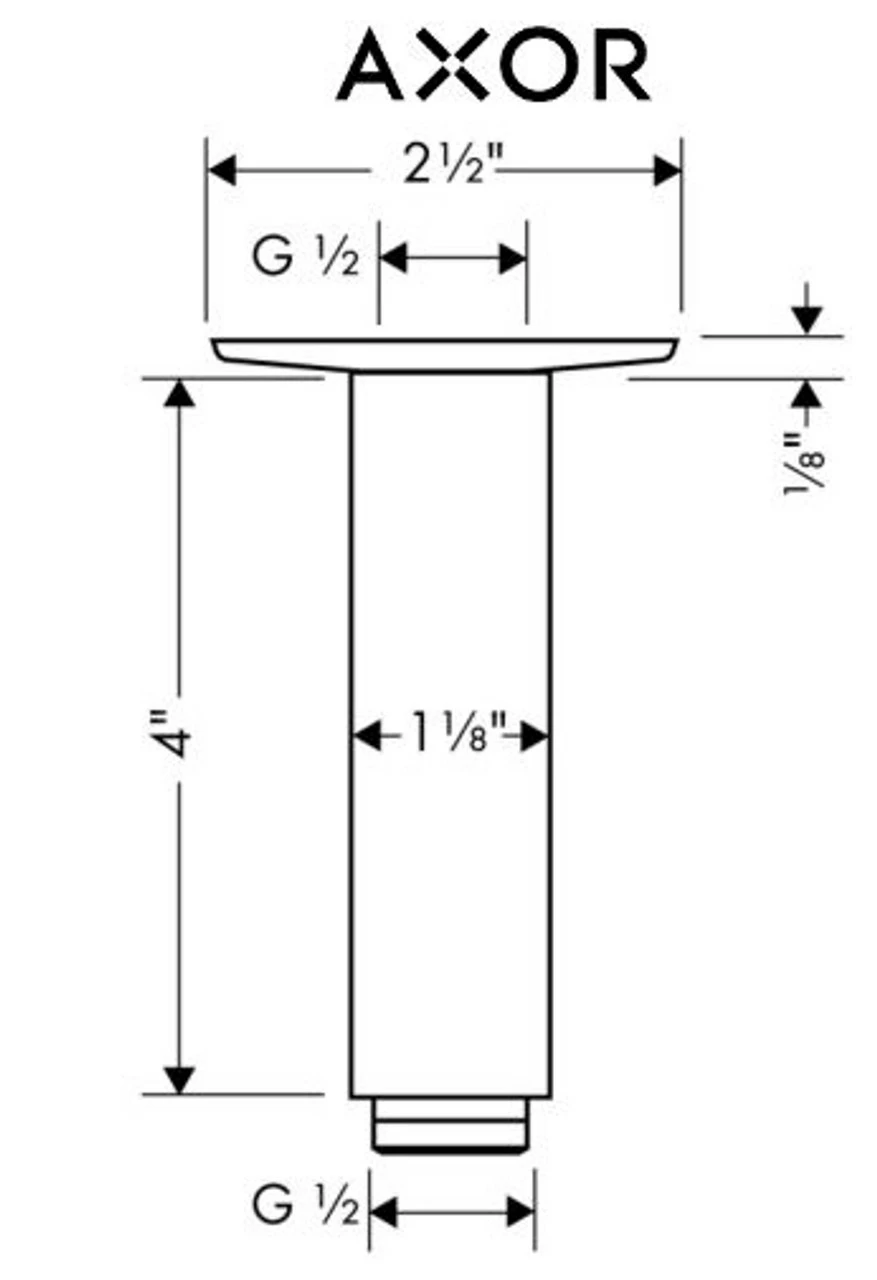

• Shower Arm Extension: 4″

• Includes handshower, slide bar, hose, and wall supply
• Multi-function handshower – featuring full and mono spray patterns
• Slide bar is constructed of brass
• Features a handshower holder with angle adjustment
• Flow Rate: 2.5 GPM
• Handshower Height: 7-1/2″
• Hose Length: 63″

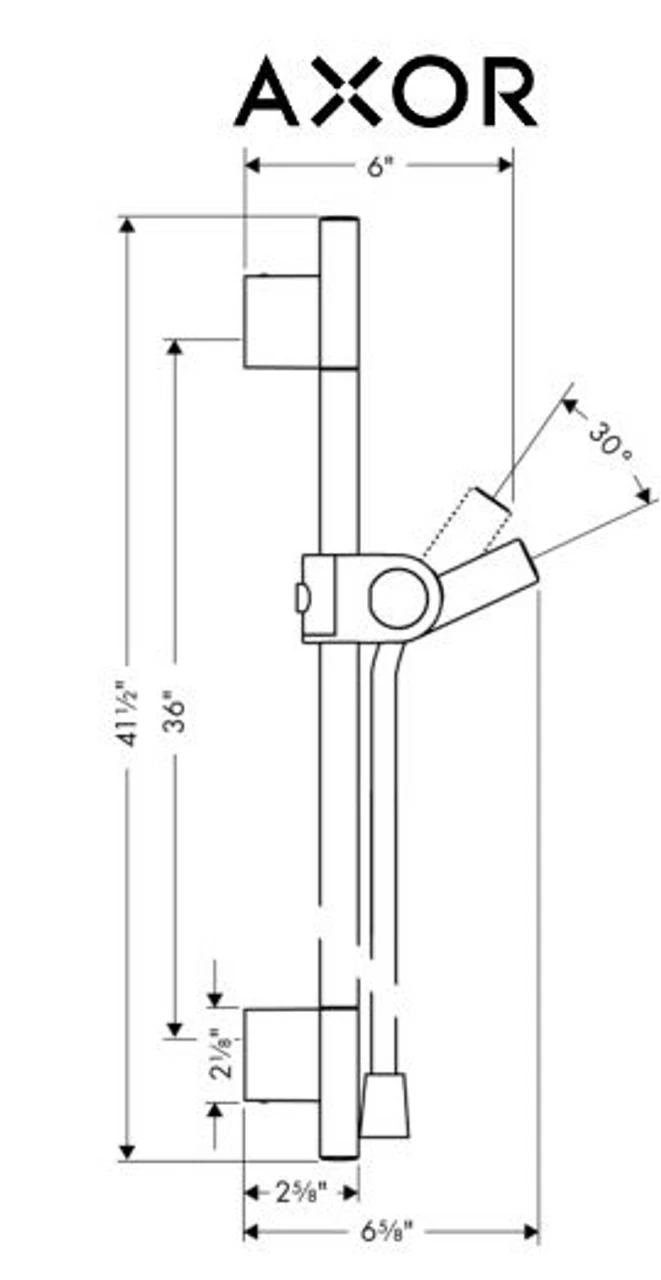

• Center-to-Center: 36″ (distance between installation points on the slide bar)
• Overall Slide Bar Length: 41-1/2″
• Slide Bar Projection: 6″

Founded in Germany’s Black Forest back in 1901, Axor is committed to building a strong sense of tradition. Featuring unsurpassed quality, design and performance, Axor’s products offer a lifetime of satisfaction. Through many breakthroughs in comfort and technology, they bring the perfect solution you need to make the most of your water experience. With a sharp eye for innovation, Axor is consistently designing products with exceptional durability, built to not only be highly functional, but also a source of luxury and pleasure. With all of the showers and faucets they offer, new useful functions and details are at the core, making daily use as easy and comfortable as possible so that you may enjoy your Axor products for many years to come.
