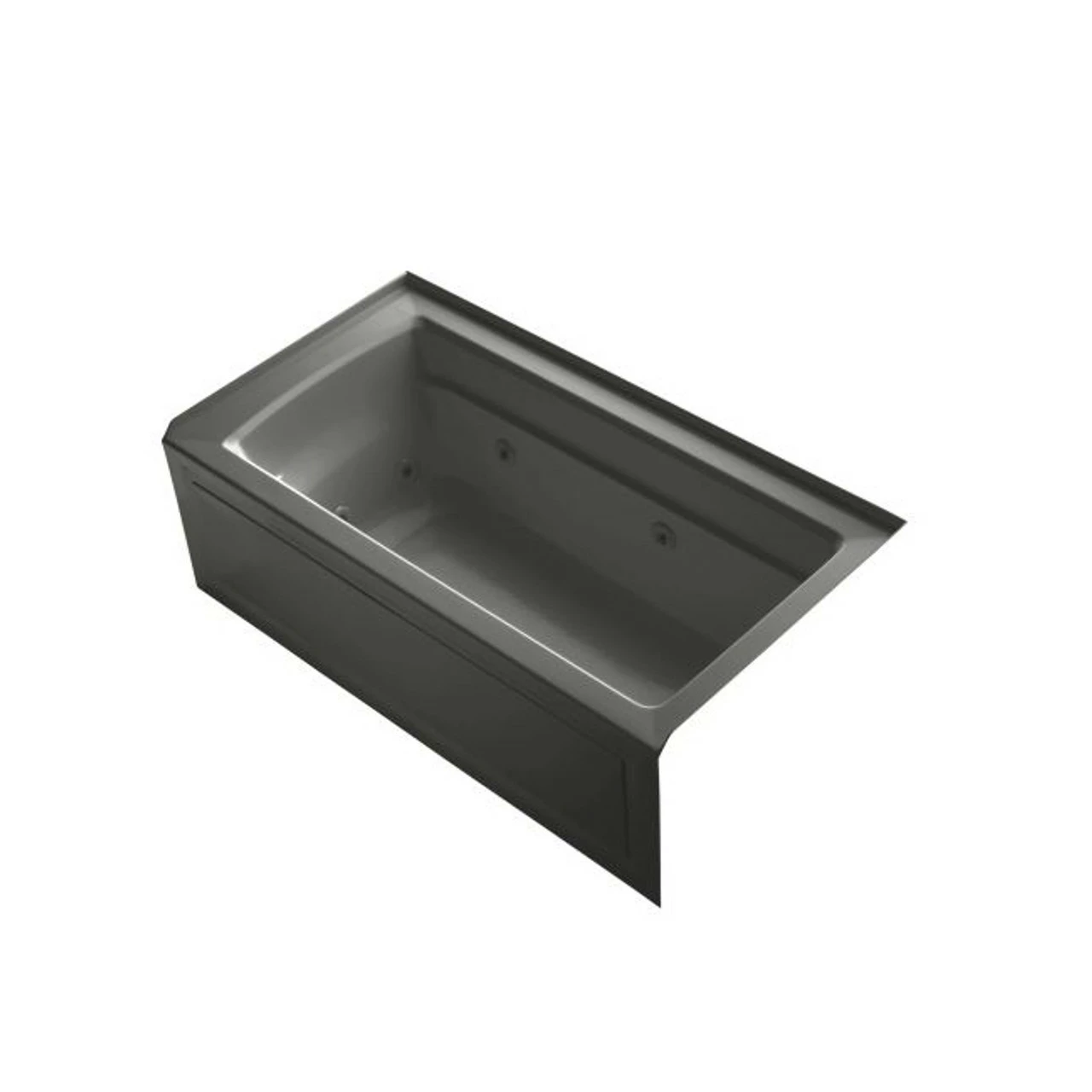

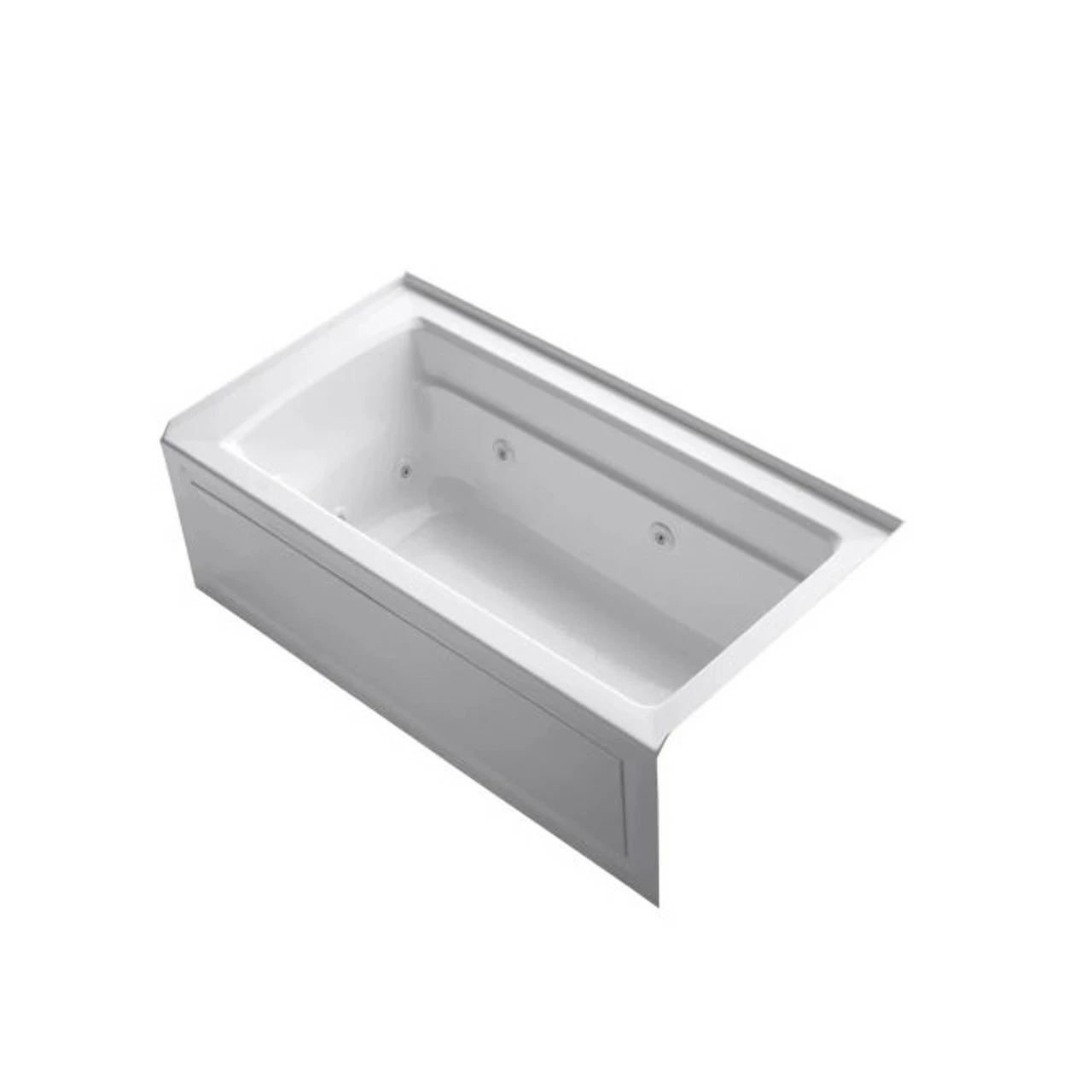

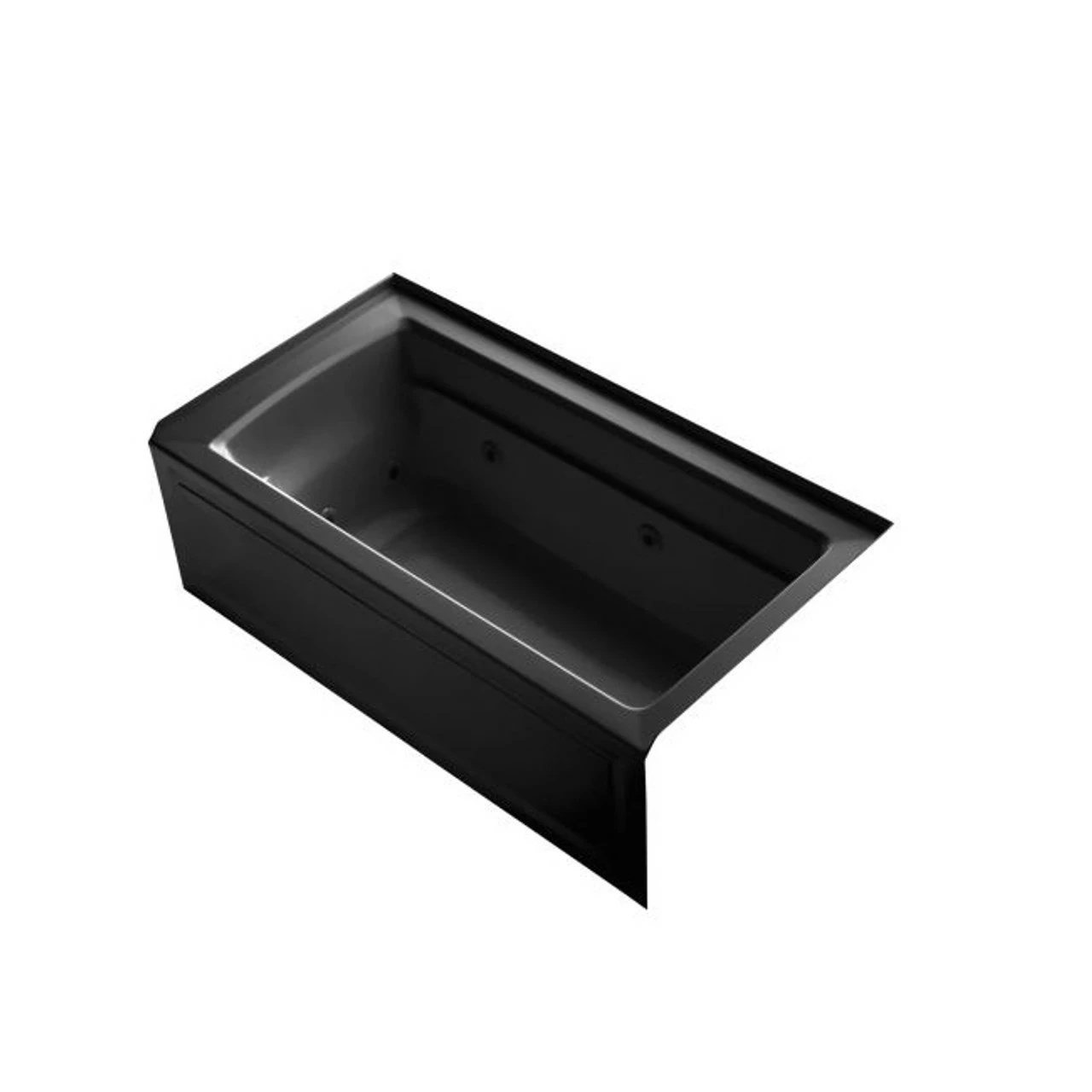

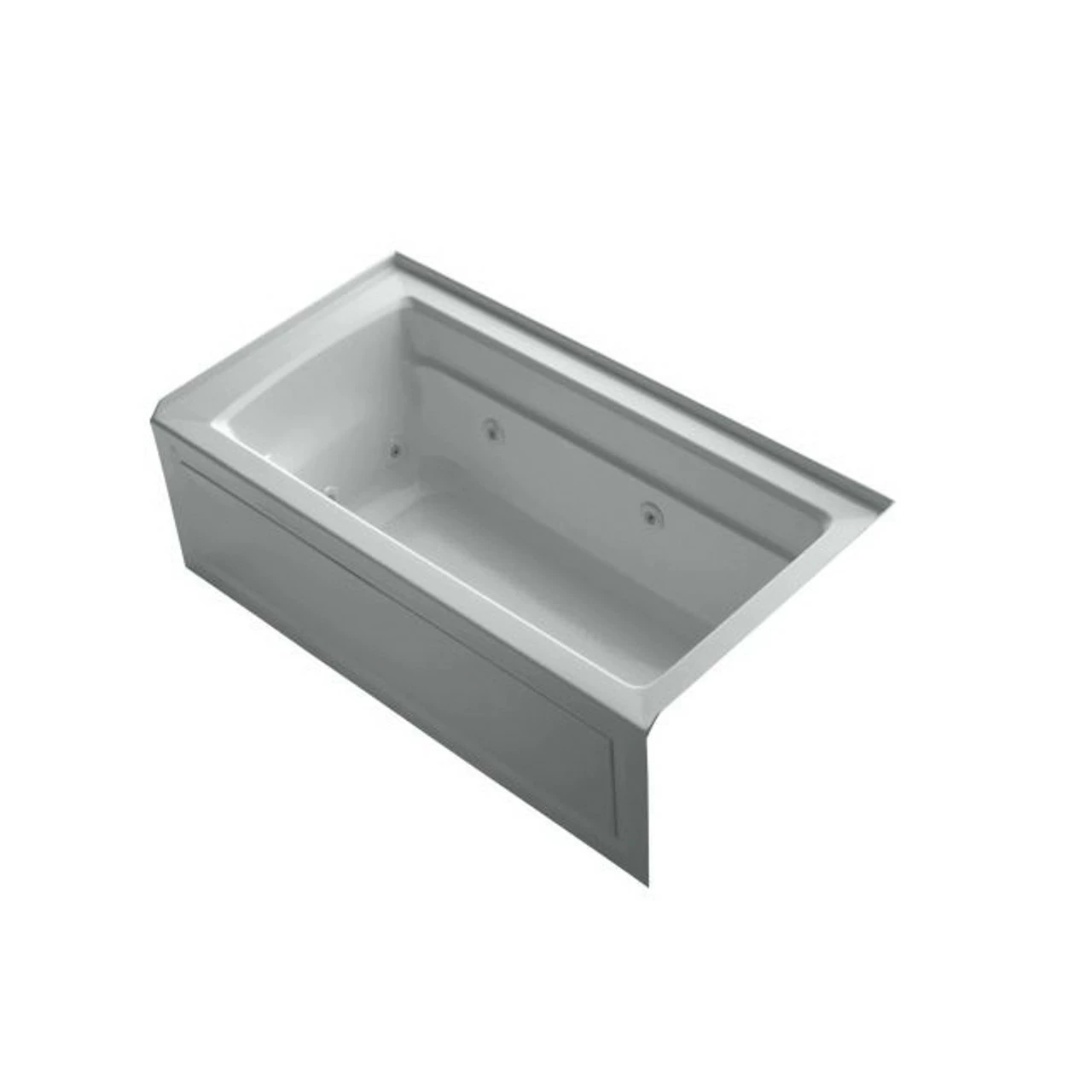

Kohler Archer Collection 60″ Three Wall Alcove Jetted Whirlpool Bath Tub with Right Side Drain
Specification Sheet:
Product Features:
- Kohler tubs are fully covered under warranty for up to a year after installation
- All jets are fully adjustable for water intensity and direction of flow
- Jets can be turned off completely
- Finger pads on outer ring for easy adjustment
- Shallow recess for ease of cleaning
- Tub is constructed from an Acrylic material making it strong and flex resistant
- Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
- The Archer Series takes its design from traditional Craftsman furniture
- Revealing beveled edges and curved bases for a clean, sophisticated style
- Single-speed whirlpool with 8 fully adjustable color matched jets offers optimum performance and value
- Hydro-massage flow and direction that can be controlled at each jet
- Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
- Installs in a Three-wall alcove configuration
- Tub comes standard with molded lumbar support, furthering the users comfort
- A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub
- Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
- ADA compliant – complies with the standard set forth by the American’s with Disabilities Act
- Product Meets or Exceeds the Following Codes/Standards: ADA, ICC/ANSI, CSA, ASME, ASTM, UL
- This tub coordinates seamlessly with other products from the Archer Collection
Product Technologies and Benefits:
- Acrylic Material – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
- Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.
Product Specifications:
- Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
- Overall Width: 32″ (measured from back most to front most point on outer rim)
- Overall Length: 60″ (measured from left most to right most point on outer rim)
- Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
- Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
- Basin Width (Top): 25-5/16″ (back to front measurement of the top of basin walls)
- Basin Length (Top): 52-3/4″ (left to right measurement of top of basin walls)
- Water Depth: 15″ (depth of water at tub’s maximum capacity)
- Maximum Water Capacity: 58-gallons
- Drain Location: Right
- Pump Voltage: 120V
