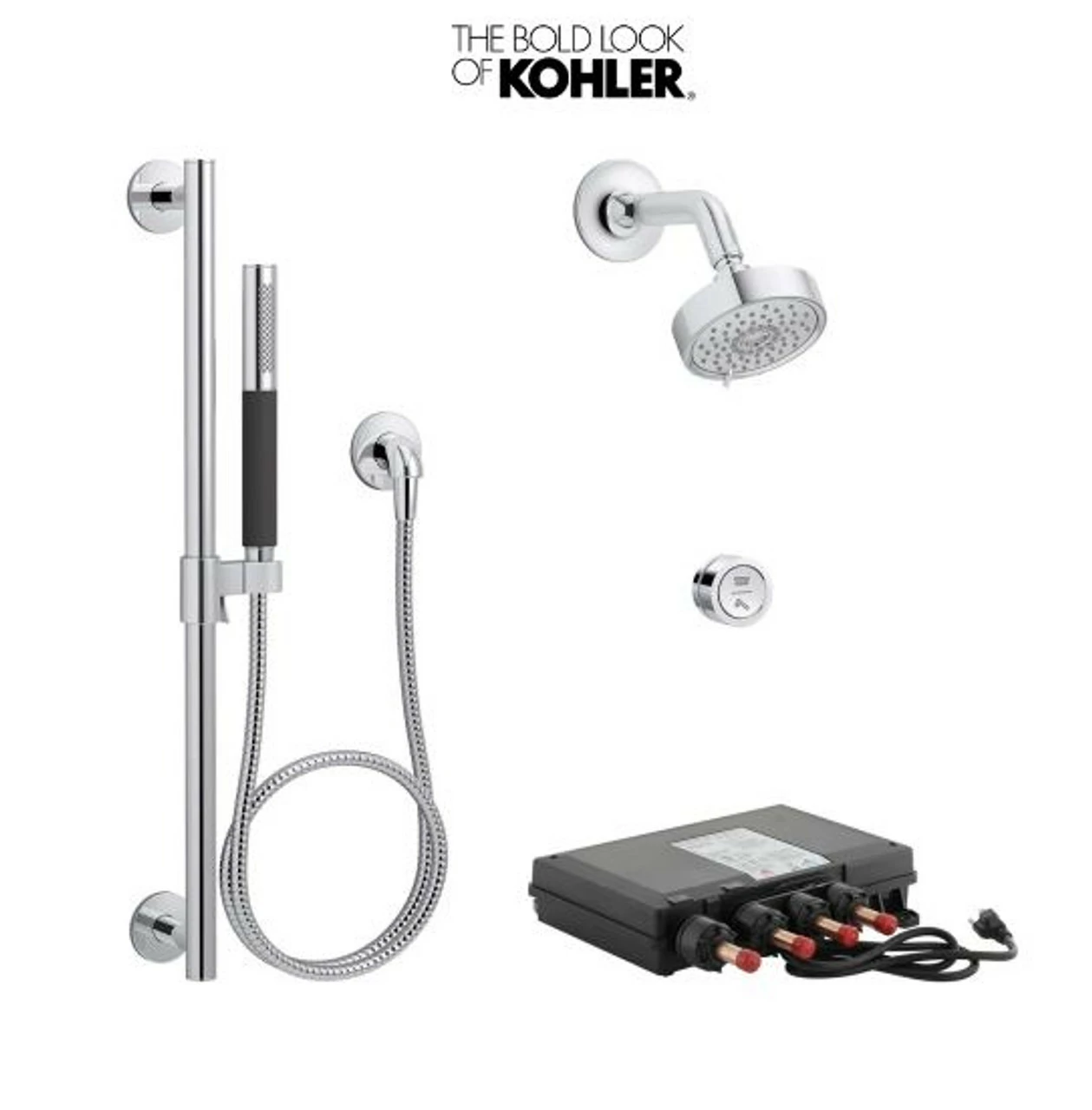

Kohler DTV Thermostatic Shower System With Shower Head, Shower Arm, Hand Shower, Hose, Slide Bar, Valve Trim, And Rough-In Valve

Kohler K-22170-29202 Features:

• Shower Package Includes: shower head, shower arm, hand shower, hose, slide bar, valve trim, and rough-in valve
• Advanced spray engine provides three experiences: full coverage, pulsating massage, and silk spray
• Full coverage spray produces an encompassing spray for everyday use and utilizes Katalyst air induction to create large, full drops
• Pulsating massage spray targets sore muscles to ease away aches and pains
• Silk spray releases a dense, luxurious spray ideal for rinsing
• Thumb tab allows for a smooth transition between sprays
• Kohler finishes resist corrosion and tarnishing, exceeding industry durability standards over two times
• Easy-to-use temperature dial control
• Digital thermostatic valve technology guarantees accurate and safe temperature control
• Integrated push-button diverter provides simple, intuitive control of two shower outlets
• Adjustable high-temperature limit for added safety
• Ability to run each outlet individually or at the same time
• Anti-scald protection
• Sleek, minimalist design
• Compatible with the Kohler Mode app featuring Bluetooth wireless technology to provide remote on/off capability and setting adjustments
• Install valve up to 20′ away from the interface (cable included with UI)
• Pre-wired with three-prong plug for connection to 110V AC receptacle

Kohler K-22170-29202 Technologies and Benefits:

• MasterClean™: MasterClean™ sprayface features an easy-to-clean surface that withstands mineral buildup

• Katalyst™: A revolutionary air induction system that makes each drop feel bigger and perform better

Valve Trim Specifications:

• Features a thermostatic valve
• Integrated diverter is located on the valve trim
• Swinging temperature dial allows for pin-point water control
• Includes a pre-set safety stop with override capability
• Rough-in valve is included with this package
• Valve Trim Height: 2-1/2″ (top to bottom)
• Valve Trim Width: 2-1/2″ (left to right)

Shower Head Specifications:

• Multi function shower head constructed of metal with 3 separate spray settings featuring full, massage, rain spray patterns
• Shower Head Flow Rate: 2.5 gallons-per-minute
• Shower Head Height: 4-5/16″ (top to bottom)
• Shower Head Width: 5-1/2″ (left to right)
• Shower Arm Length: 8-3/8″

Hand Shower Specifications:

• Hose Length: 60″
• Hand Shower Flow Rate: 2.5 gallons-per-minute
• Hand Shower Type: Multi Function
• Shower system includes wall supply for hand shower
