Kohler DTV Thermostatic Shower System With Shower Head, Shower Arm, Hand Shower, Hose, Slide Bar, Valve Trim, And Rough-In Valve 2

Kohler K-76465-29202 Features:

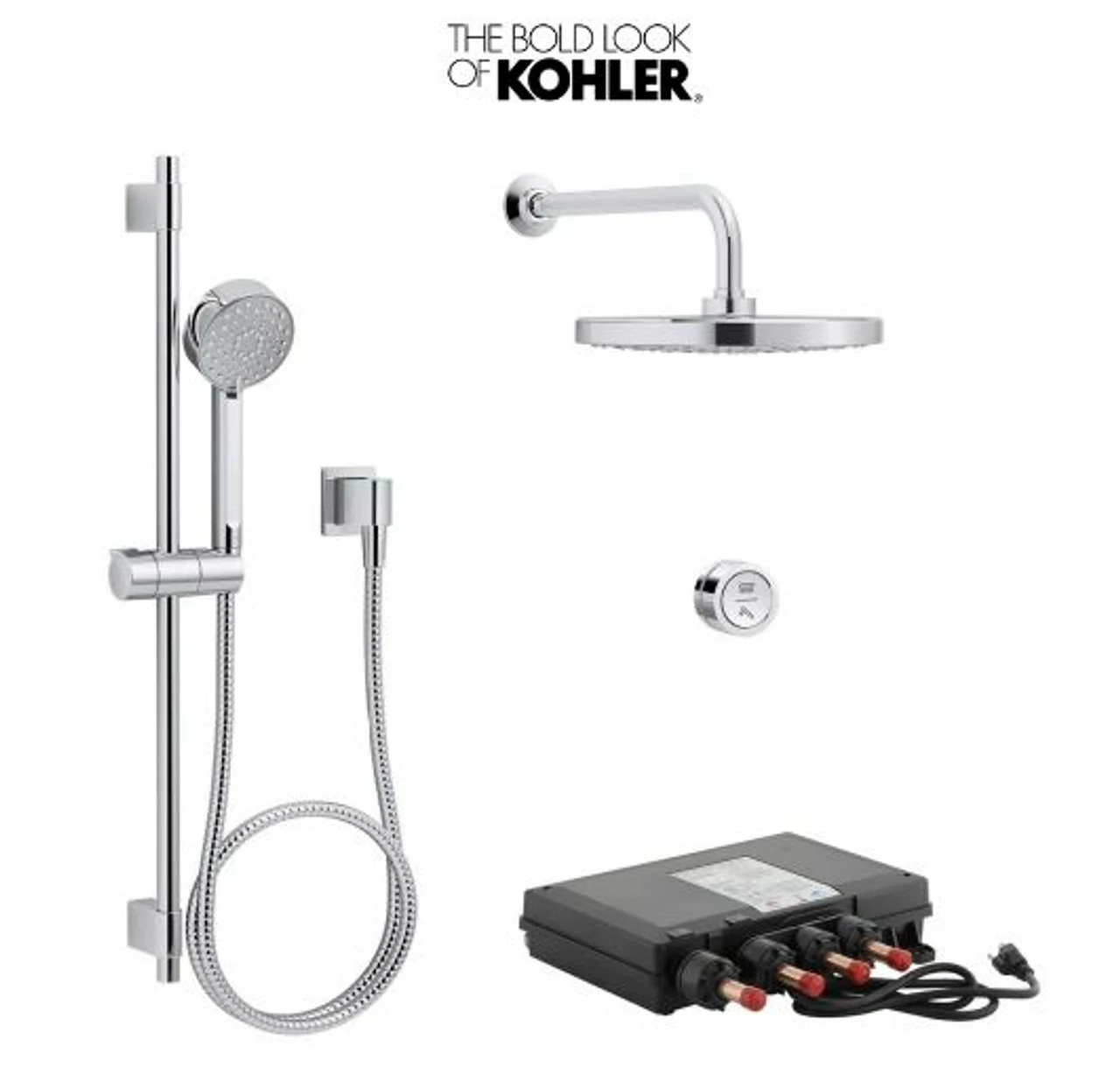

• Shower Package Includes: shower head, shower arm, hand shower, hose, slide bar, valve trim, and rough-in valve
• Hand shower multiple spray functions – featuring 3 spray patterns
• Single function rain shower head
• Angled nozzles provide a full coverage spray
• Kohler finishes resist corrosion and tarnishing, exceeding industry durability standards over two times
• Easy-to-use temperature dial control
• Digital thermostatic valve technology guarantees accurate and safe temperature control
• Integrated push-button diverter provides simple, intuitive control of two shower outlets
• Adjustable high-temperature limit for added safety
• Ability to run each outlet individually or at the same time
• Anti-scald protection
• Sleek, minimalist design
• Compatible with the Kohler Mode app featuring Bluetooth wireless technology to provide remote on/off capability and setting adjustments
• Install valve up to 20′ away from the interface (cable included with UI)
• Pre-wired with three-prong plug for connection to 110V AC receptacle

Kohler K-76465-29202 Technologies and Benefits:

• MasterClean™: MasterClean™ sprayface features an easy-to-clean surface that withstands mineral buildup

Valve Trim Specifications:

• Features a thermostatic valve
• Integrated diverter is located on the valve trim
• Swinging temperature dial allows for pin-point water control
• Includes a pre-set safety stop with override capability
• Rough-in valve is included with this package
• Valve Trim Height: 2-1/2″ (top to bottom)
• Valve Trim Width: 2-1/2″ (left to right)

Shower Head Specifications:

• Single function shower head constructed of metal
• Shower Head Flow Rate: 2 gallons-per-minute
• Shower Head Height: 8-7/8″ (top to bottom)
• Shower Head Width: 3-9/16″ (left to right)
• Shower Arm Length: 14-5/8″

Hand Shower Specifications:

• Hose Length: 60″
• Hand Shower Flow Rate: 2 gallons-per-minute
• Hand Shower Type: Multi Function
• Shower system includes wall supply for hand shower
