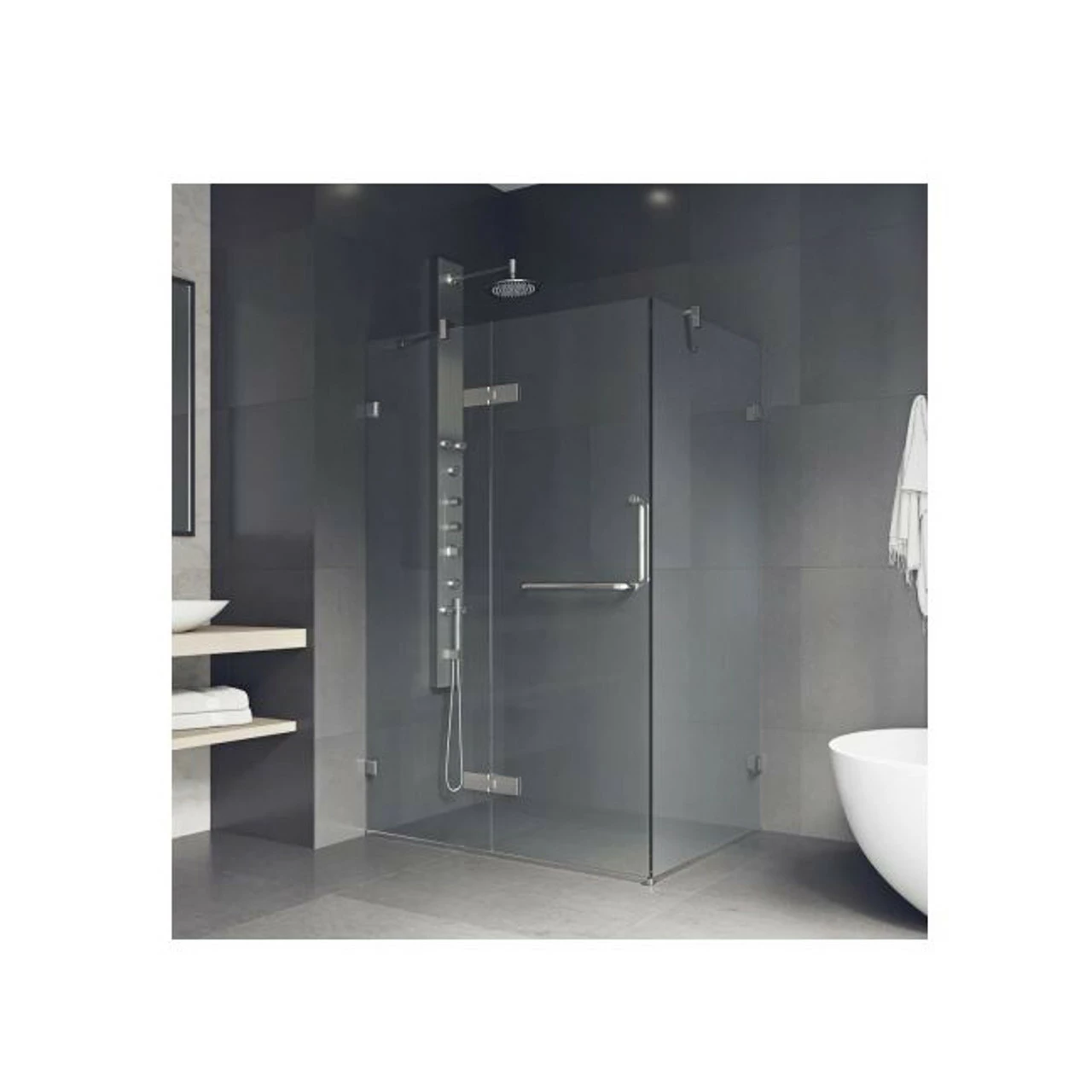

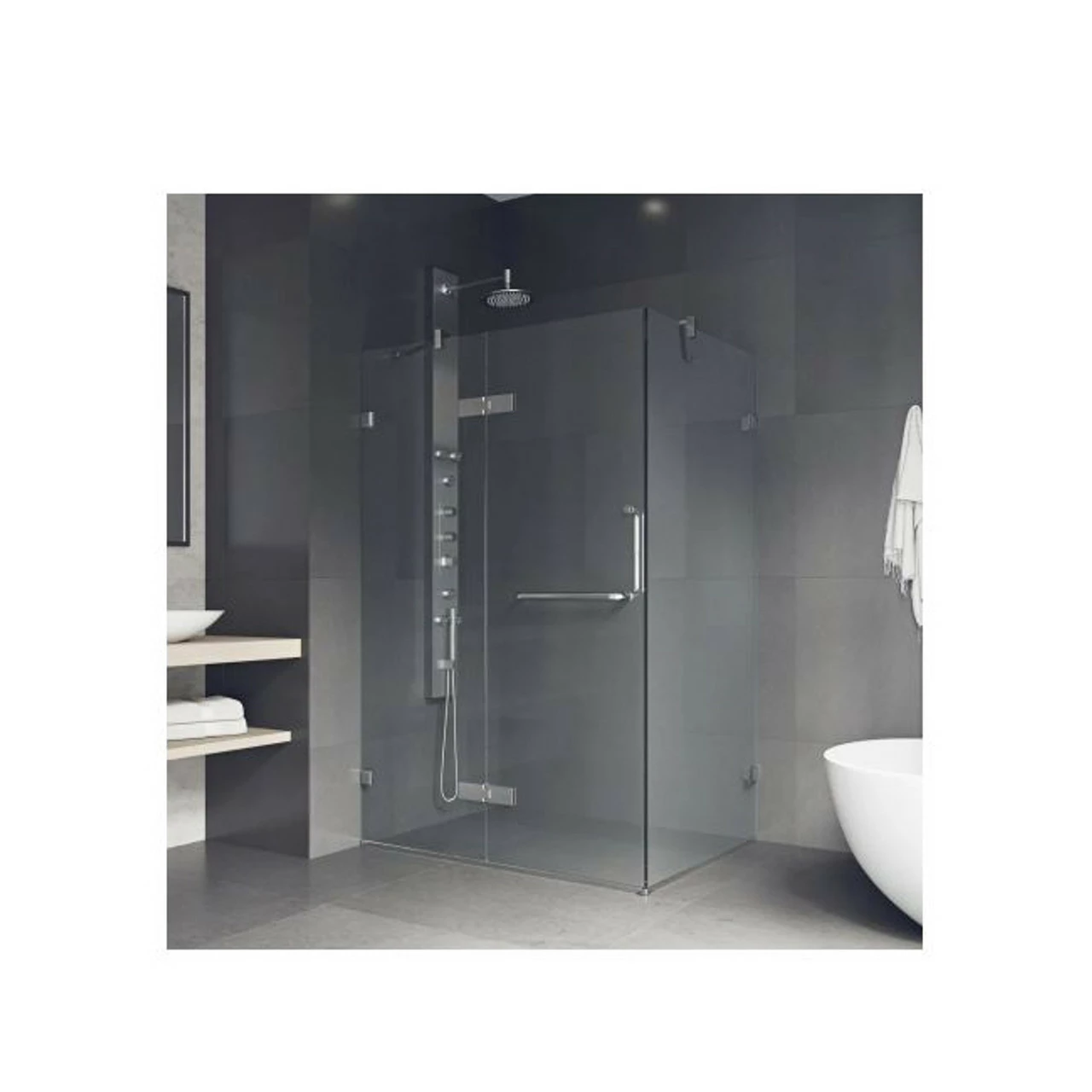

Vigo Monteray 73-3/8″ High X 38 1/4″ Wide X 30-1/4″ Deep Hinged Frameless Shower Enclosure With 3/8″ Glass

Vigo Monteray 73-3/8″ High x 38 1/4″ Wide x 30-1/4″ Deep Hinged Frameless Shower Enclosure with 3/8″ Glass

Specification Sheet:

VIGO™ VG601140 Features:

• Covered under VIGO’s™ limited lifetime residential or 1 year commercial warranty
• Glass shower enclosures may be installed on custom tile bases or for a streamlined installation they may be combined with an acrylic shower base
• Constructed of durable 3/8″ thick tempered glass and complemented by stainless steel profiles
• A frameless design gives a modern, sleek look to the shower
• Pivot/Hinged shower door operation gives an impressive look to any shower unit and gives the feeling of more space as you utilize the shower
• Full-length magnetic catch allowing for door adjustment and waterproof protection
• Stylized towel bar for a completely different look
• Clear PVC side gasket installs vertically onto door to ensure a water-tight seal between door and side panel when the door is in the closed position
• Fixed arm support ensures wall anchoring and reinforces wall stability
• Door opens to the left or right depending upon installation configuration
• Discrete door handle mounted on pre drilled glass
• All hardware required for installation of shower door is included
• Shower base is ordered separately

VIGO™ VG601140 Specifications:

• Overall height: 73-3/8″ (measured from bottom to top of enclosure)
• Overall Width: 38 1/4″ (measured from left to right of enclosure)
• Overall Depth: 30-1/4″ (measured from back to front of enclosure)
• Maximum Door Opening: 22-7/8″ (this is assuming door is not trimmed down)
• Glass Thickness: 3/8″
• Installation Type: Corner
• Opening Direction: Reversible
• Number of Panels: 3
• Front Glass Panel: 14-1/8″ W x 71-5/8″
• Side Glass Panel: 29-5/16″ W x 71-5/8″ H
• Shower Door Dimensions: 22-7/8″ W x 70-3/4″ H
