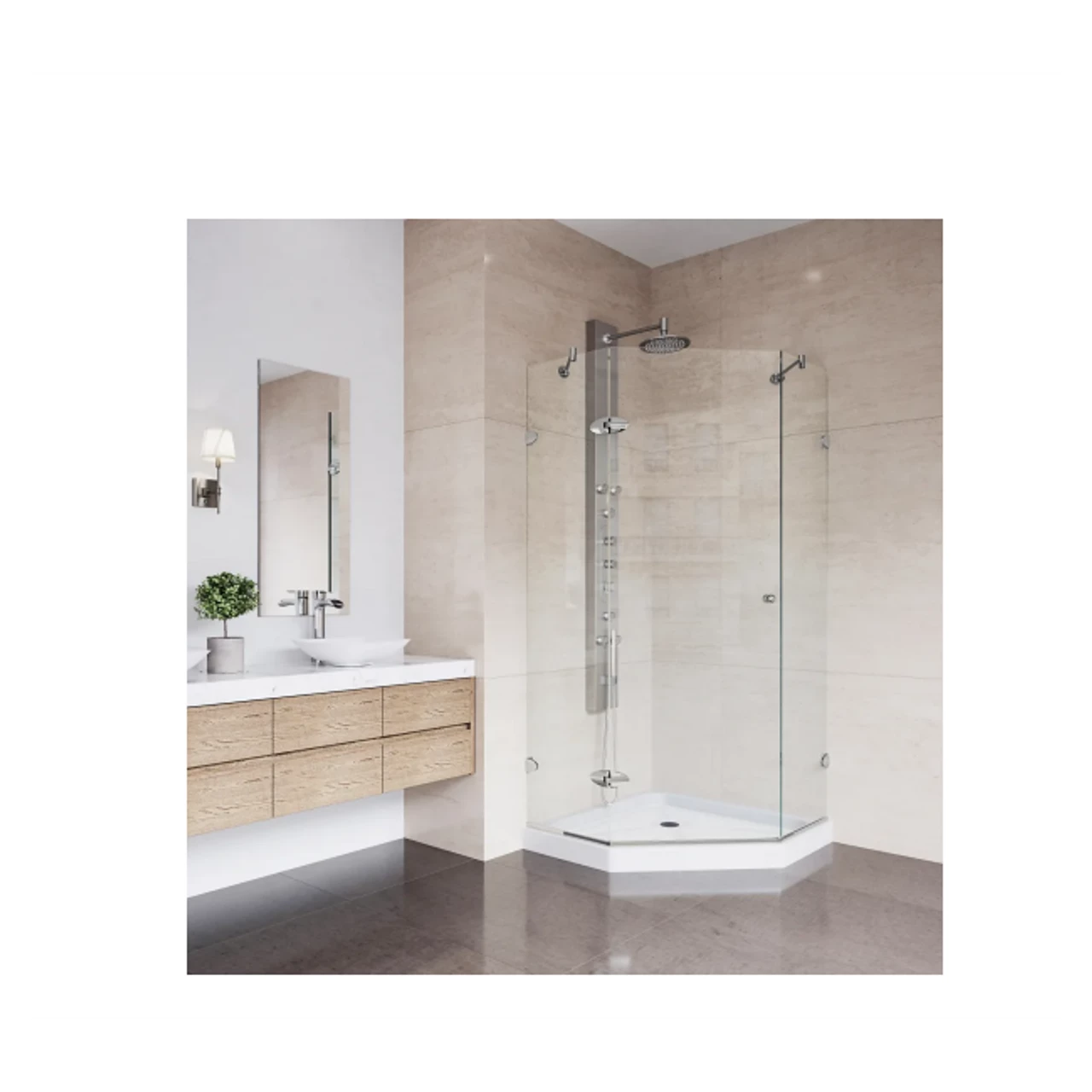

Vigo Verona 76-3/4″ High X 42″ Wide X 42-1/8″ Deep Hinged Frameless Shower Enclosure With 3/8″ Glass – Low Profile Shower Pan Included

Vigo Verona 76-3/4″ High x 42″ Wide x 42-1/8″ Deep Hinged Frameless Shower Enclosure with 3/8″ Glass – Low Profile Shower Pan Included

Specification Sheet:

VIGO™ VG606142WS Shower Frame Features:

• Covered under VIGO’s™ limited lifetime residential or 1 year commercial warranty
• Glass shower enclosures may be installed on custom tile bases or for a streamlined installation they may be combined with an acrylic shower base
• Constructed of durable 3/8″ thick tempered glass and complemented by stainless steel profiles
• A frameless design gives a modern, sleek look to the shower
• Pivot/Hinged shower door operation gives an impressive look to any shower unit and gives the feeling of more space as you utilize the shower
• Full-length magnetic catch allowing for door adjustment and waterproof protection
• Clear PVC side gasket installs vertically onto door to ensure a water-tight seal between door and side panel when the door is in the closed position
• Fixed arm support ensures wall anchoring and reinforces wall stability
• Door opens to the left or right depending upon installation configuration
• Discrete door handle mounted on pre drilled glass
• All hardware required for installation of shower door is included

VIGO™ VG606142WS Shower Tray Features:

• Fiberglass reinforced acrylic construction with double threshold
• Durable cross-linked cast acrylic shell is extremely scratch and stain resistant, yet renewable because the color goes all the way through the material
• Non-porous surface makes cleaning and sanitizing faster and more effective
• Multi-layered backing of thick fiberglass / resin encloses wood reinforcement to prevent flexing of floor pan
• Pre-leveled with integral tile flange on 2 sides to facilitate installation
• Low-Profile shower base has a textured bottom for extra safety
• Standard 3-1/2″ pre-drilled drain opening
• Shower drain must be ordered separately

VIGO™ VG606142WS Specifications:

• Overall height: 76-3/4″ (measured from bottom to top of enclosure)
• Overall Width: 42″ (measured from left to right of enclosure)
• Overall Depth: 42-1/8″ (measured from back to front of enclosure)
• Maximum Door Opening: 25-7/8″ (this is assuming door is not trimmed down)
• Glass Thickness: 3/8″
• Installation Type: Corner
• Opening Direction: Reversible
• Number of Panels: 3
• Side Glass Panels: 20-1/2″ W x 71-5/8″ H, 20-1/4″ W x 71-5/8″ H
• Shower Door Dimensions: 25-7/8″ W x 70-3/4″ H
